Full-digital Trolley Ultrasound Scanner
First-class digital imaging technology, more clearer image:
Full-digital beam imaging technology
Real-time dynamic receiving focus point by point
Real-time dynamic sound velocity changed
High-accuracy DSC Digital image formation technology
Intelligentized 8-segment TGC adjustment
Progressive SMT components technology to ensure machine reliability
USB port: storable and readable
Flexible and convenient operating system:
15 inch LED liquid crystal display, angle range is more flexible to adjust
Back-lit keyboard silicon gel,more comfortable and wearable,no trouble in using in the darkroom
Intelligentized menu,man-machine diaglogue is easy and quick
Puncture guide line can display under B mode, angle and position are adjustable
More magnification display, Disease diagnosis more accurate
USB storage is connected outside, more convenient to upload pictures
Large capacity of cine loop,image can display circularly and automatically
Technical Specification :
Scanning mode: convex / linear / micro-convex
Probes: 80/96 elements convex probe,trans-vaginal probe, trans-rectal probe, high frequency linear probe
Monitor: 15 inch high resolution LED
Operation panel: user-friendly, convenient and flexible with back-lit silica gel keyboard & track ball operation
| Display mode | B, B+B, B+M, M, 4B |
| Detecting depth | ≥242mm |
| Resolution | lateral≤2mm, axial≤1mm |
| Blind Zone | ≤3mm |
| Geometry precision | lateral≤5%, axial≤5% |
| Gray scale | 256 |
Electronical focusing: 2 focuses combination randomly
Cine loop: 256 frames, realized in automatic successive playback and manual single step forward, backward playback
USB port: storable and readable
Image storage: 8
Local zoom can be used at real time.
Magnification: ×0.8, ×0.8, ×0.90, ×0.95, ×1.0, ×1.05, ×1.10, ×1.20, ×1.30, ×1.40, ×1.50, ×1.60, ×1.80, ×2.0, ×2.2, ×2.5.(16 kinds)
Body marks: 30
Probe interface: 2
Pseudo color: 7
Image processing,: up/ down, left / right, black / white convertion, edge enhancement, gamma correction, frame correlation, pseudo color processor( need external color display).
Measurement: distance, perimeter, area, volume, heart rate, gestational week, FW, AFI, EDD , maternity table, heart package etc.
Note: date, time, name, sex, age, doctor, hospital, comment, Chinese/ English conversion.
Output interface: PAL-D, SVGA (SVGA color monitor), USB port .
With the puncture guiding function, line position can be adjusted
With gravel positioning, dynamic target area tracking function
Main power supply: AC220V±22V , 50/60Hz
| Probe Depth | 16 levels |
| Probe Frequency | 5 levels |
| Main gain | 0-100% |
| 8 TGC | adjustable |
| Focus | 4 |
| Image storage | 4920 images |
| Pseudo color | 0-7 |
| Scanning area(angle) | 3 levels |
| Edge enhancement | 0-3 |
| Linear correlation | 0-5 |
| Gamma correction | 0-7 |
| Frame correlation | 0-3 |
| Dynamic range | 0-135 |
| Cine loop | 512 frames |
| Body mark | 97 kinds |
Standard configuration:
15 inch high resolution LED
3.5MHz Multi-frequency convex probe(2.5MHz-5.0MHz)
Options:
1)6.5MHz High frequency Trans-vaginal probe (5.5MHz-7.5MHz)
2)7.5MHz High frequency Linear probe(7.5MHz-8.5MHz)
3) 7.5 MHz High frequency rectal Linear Probe
4) Color laser printer
|
|

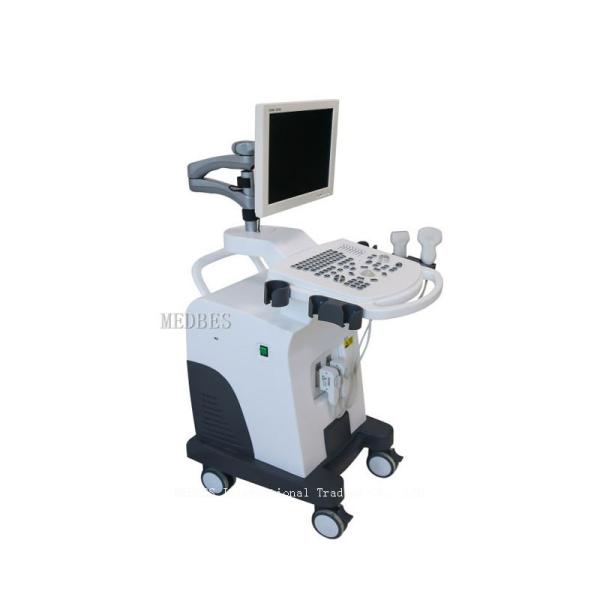

2D Trolley Black and White Ultrasoudn Scanner with convex probe Images
|
